Các điểm Pivot Point là mức giá quan trọng được tính toán dựa trên giá cao nhất (high), giá thấp nhất (low) và giá đóng cửa (close) của phiên giao dịch trước đó. Nó được sử dụng để xác định các mức hỗ trợ và kháng cự tiềm năng.
Stock channel hay kênh giá là một phạm vi giá mà cổ phiếu dao động trong một khoảng thời gian nhất định. Kênh giá giúp xác định xu hướng hiện tại của thị trường. Có ba loại kênh giá phổ biến:
Kênh giá tăng (Ascending Channel) – Giá dao động trong một xu hướng tăng với mức đáy và đỉnh cao dần.
Kênh giá giảm (Descending Channel) – Giá dao động trong xu hướng giảm với mức đáy và đỉnh thấp dần.
Kênh giá ngang (Sideways Channel) – Giá dao động trong một phạm vi hẹp, không có xu hướng rõ ràng.
Kênh giá được xác định bằng hai đường trendline:
Trendline trên kết nối các đỉnh
Trendline dưới kết nối các đáy
Khi giá chạm vào đường trendline trên hoặc dưới, nó có thể phản ứng theo hai cách:
Bật ngược lại nếu kênh giá tiếp tục giữ.
Phá vỡ (Breakout) nếu xu hướng thay đổi, có thể dẫn đến sự hình thành một kênh giá mới.
Stock channels thường được sử dụng để tìm điểm vào lệnh mua ở vùng hỗ trợ và bán ở vùng kháng cự.

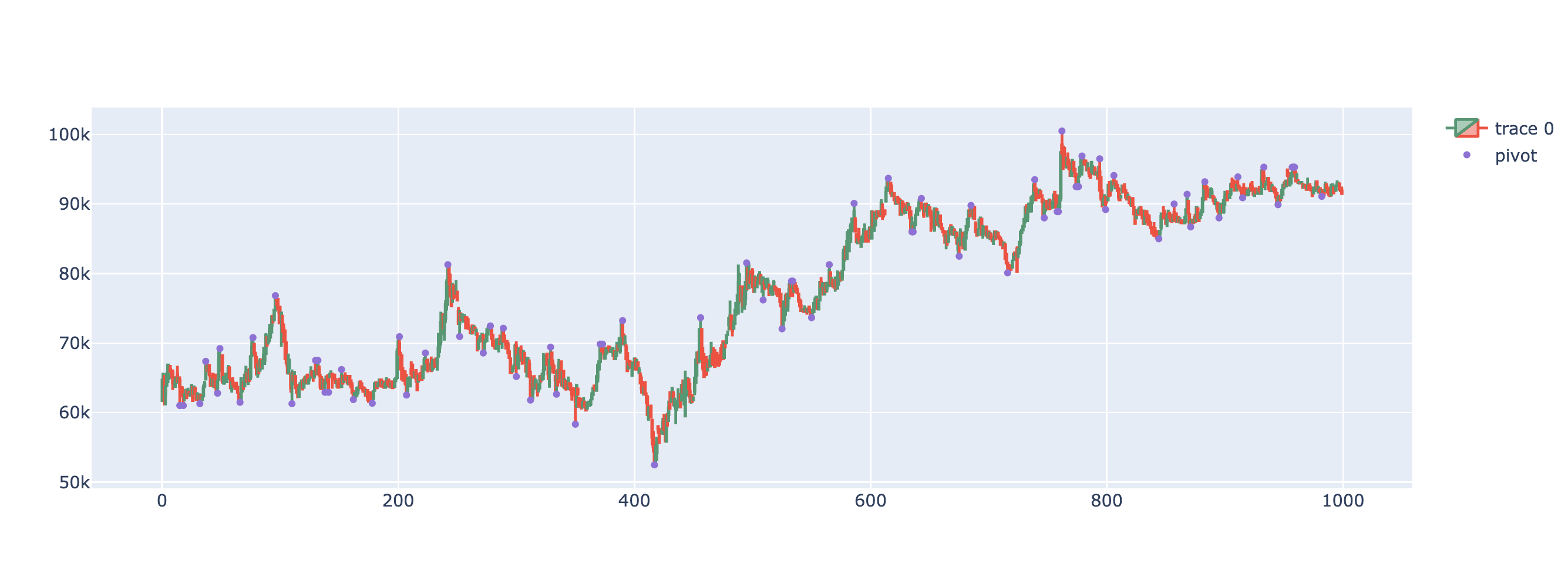

Pivot Point (điểm màu tím) trong dữ liệu lích sử giá của VCB
Lấy Historical data từ thư viện Fiinquant
TÌm Pivot Point và plot giá cổ phiếu

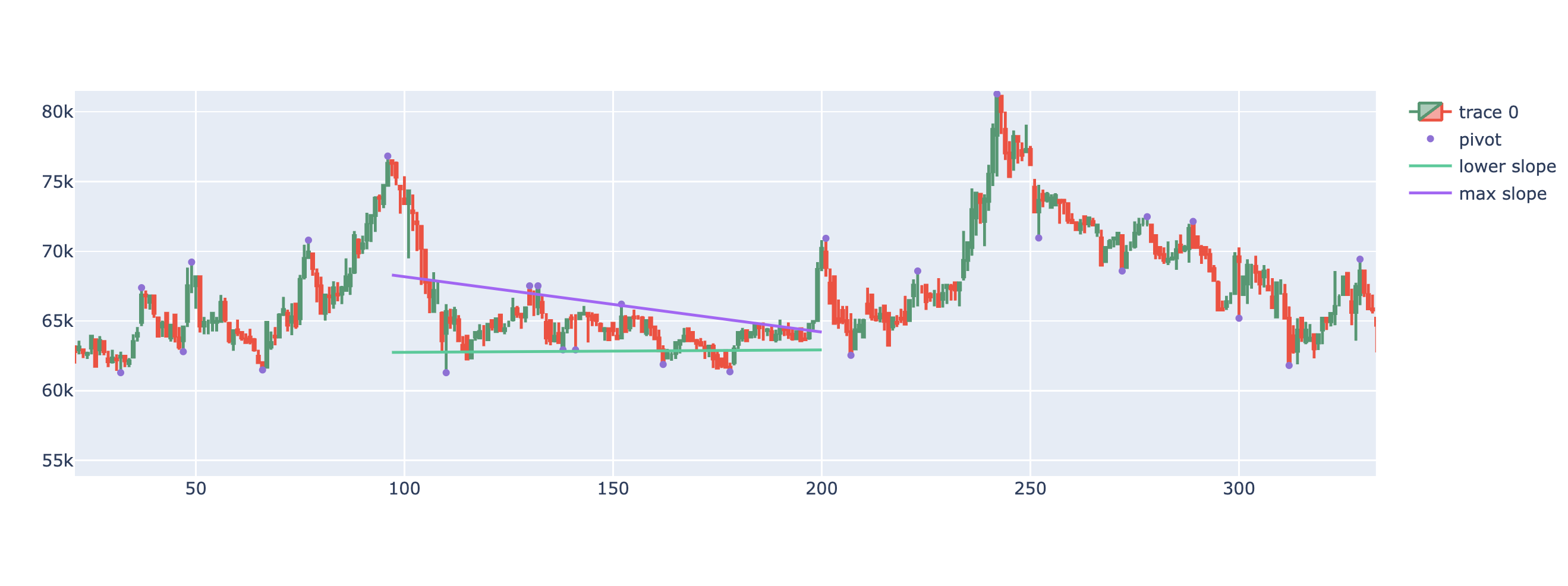

Tìm Price Channel dựa trên Pivot Point
Một đoạn Sideway Channel
2. Thống kê các giai đoạn tăng giá của VN-Index
Thông số có thể thay đổi:
Nếu đổi percent từ 5.0 lên 10.0 sẽ lọc những giai đoạn thị trường chỉnh nhiều hơn
Fulll Code
3. Thống kê diễn biến các phiên trước nghỉ lễ
4. Thống kê số lượng mã cổ phiếu cắt lên và cắt xuống đường MA20
5. Thống kê giá trị điều chỉnh khi thị trường tăng nóng
import pandas as pd
import numpy as np
import plotly.graph_objects as go
from scipy import stats
from FiinQuantX import FiinSession
username = 'REPLACE_WITH_YOUR_USER_NAME'
password = 'REPLACE_WITH_YOUR_PASS_WORD'
client = FiinSession(
username=username,
password=password
).login()
data = client.Fetch_Trading_Data(
tickers='VCB',
fields=['open', 'high', 'low', 'close', 'volume'],
adjusted=True,
period=1000,
realtime=False,
by='1d',
).get_data()
# Function to identify pivot points in price data
# Returns: 0 for no pivot, 1 for pivot high, 2 for pivot low, 3 for both
# Parameters:
# candle: index of the current candle being checked
# window: number of candles to check on either side
def isPivot(candle, window):
if candle-window < 0 or candle+window >= len(data):
return 0
pivotHigh = 1
pivotLow = 2
for i in range(candle-window, candle+window+1):
if data.iloc[candle].low > data.iloc[i].low:
pivotLow=0
if data.iloc[candle].high < data.iloc[i].high:
pivotHigh=0
if (pivotHigh and pivotLow):
return 3
elif pivotHigh:
return pivotHigh
elif pivotLow:
return pivotLow
else:
return 0
# Apply isPivot function to each row of data
window=10
data['isPivot'] = data.apply(lambda x: isPivot(x.name,window), axis=1)
# Function to determine plotting position for pivot points
# Returns slightly offset values for visual clarity on the chart
# Parameters:
# x: row of dataframe containing price and pivot information
def pointpos(x):
if x['isPivot']==2:
return x['low']-1e-3 # Offset below pivot low
elif x['isPivot']==1:
return x['high']+1e-3 # Offset above pivot high
else:
return np.nan
# Apply pointpos function to create plotting positions
data['pointpos'] = data.apply(lambda row: pointpos(row), axis=1)
# Create candlestick chart
dfpl = data.copy()
fig = go.Figure(data=[go.Candlestick(x=dfpl.index,
open=dfpl['open'],
high=dfpl['high'],
low=dfpl['low'],
close=dfpl['close'])])
fig.add_scatter(x=dfpl.index, y=dfpl['pointpos'], mode="markers",
marker=dict(size=5, color="MediumPurple"),
name="pivot")
fig.update_layout(xaxis_rangeslider_visible=False)
fig.show()
# Function to identify and calculate channel slopes using pivot points
# Parameters:
# candle: Current candle position to analyze from
# backcandles: Number of previous candles to look back
# window: Window size for pivot point calculation
def collect_channel(candle, backcandles, window):
# Get subset of data for analysis
localdf = data[candle-backcandles-window:candle-window]
localdf['isPivot'] = localdf.apply(lambda x: isPivot(x.name,window), axis=1)
# Extract pivot highs and lows with their indices
highs = localdf[localdf['isPivot']==1].high.values
idxhighs = localdf[localdf['isPivot']==1].high.index
lows = localdf[localdf['isPivot']==2].low.values
idxlows = localdf[localdf['isPivot']==2].low.index
# Calculate regression lines if enough pivot points exist
if len(lows)>=2 and len(highs)>=2:
# Calculate regression for lower channel (pivot lows)
sl_lows, interc_lows, r_value_l, _, _ = stats.linregress(idxlows,lows)
# Calculate regression for upper channel (pivot highs)
sl_highs, interc_highs, r_value_h, _, _ = stats.linregress(idxhighs,highs)
return(sl_lows, interc_lows, sl_highs, interc_highs, r_value_l**2, r_value_h**2)
else:
return(0,0,0,0,0,0)
# Set parameters for channel analysis
candle = 200 # Current candle position
backcandles = 100 # Number of candles to look back
window = 3 # Window size for pivot calculation
# Create candlestick chart
fig = go.Figure(data=[go.Candlestick(x=dfpl.index,
open=dfpl['open'],
high=dfpl['high'],
low=dfpl['low'],
close=dfpl['close'])])
# Add pivot points to chart
fig.add_scatter(x=dfpl.index, y=dfpl['pointpos'], mode="markers",
marker=dict(size=5, color="MediumPurple"),
name="pivot")
# Calculate channel slopes and angles
sl_lows, interc_lows, sl_highs, interc_highs, r_sq_l, r_sq_h = collect_channel(candle, backcandles, window)
print(sl_lows,sl_highs)
angle_lows = np.degrees(np.arctan(sl_lows))
angle_highs = np.degrees(np.arctan(sl_highs))
# Plot channel lines
x = np.array(range(candle-backcandles-window, candle+1))
fig.add_trace(go.Scatter(x=x, y=sl_lows*x + interc_lows, mode='lines', name='lower slope'))
fig.add_trace(go.Scatter(x=x, y=sl_highs*x + interc_highs, mode='lines', name='max slope'))
fig.update_layout(xaxis_rangeslider_visible=False)
fig.show()
